Concealed Large Motorized Screen
Image width from 3m (10ft) to 4m (13ft)
Available in standard or customize sizes.
CMS-L Series is the big brother of CMS Series. Like CMS, it can be concealed in false ceiling saving the need for an additional pelmet.
CMS-L Series is the highest quality motorized screen in its category. Incorporated with high quality fibreglass backed Polyester fabric, it offers an unmatched flatness in its class. Design with beautifully powder coated aluminium casing to blend aesthetically into any venue.
Power and control
The screen is powered by a silent AC tubular motor that is capable of fast and quiet operation. Such motor is also well known for its reliability and durability. The screen comes with a Remaco invented ESC (Electronic screen control) which allows it to be controlled by Electronic Wall Switch, Remote control or third party controller. It caters to all kind of installation requirements.
Optional Trap Door
Trap door option is not available for the CMS-L series screen.
Suitable for all kinds of projection. Not recommended for Ultra short throw application. Contact our sales person for your requirement.
Fully concealed when not in use
Suitable for all kinds of false ceiling
Compact, Light weight and Beautiful Finishing
Ease of installation
Adjustable setting for desired up/down position
Adjustable screen position horizontally
Specifications:
|
Motor Type
|
AC Tubular Motor; Silent Type
|
|
Motor Speed
|
17 rpm
|
|
Operating
|
120 degree Celsius (thermostat cut off motor)
|
|
Fabric Roll Speed
|
4.8m/min
|
|
Screen Gain
|
1.2
|
|
Viewing Angle
|
160 degrees viewing cone
|
|
Screen Materials
|
Matte White, Vinyl fabric
(Flame retardant and fungus resistant) |
|
External Wired Control
|
Normally open, momentary contact closure
(voltage free) |
|
IR Remote Sensitivity Distance
|
Maximum 15 metres
|
|
Sensor Coverage
|
160 deg. (horizontal) 150 deg. (vertical)
|
|
Power Consumption
|
121W |
|
Current
|
1.2 or 0.64 Amperes |
|
Voltage
|
100-120VAC or 220-240VAC , 50/60 Hz |

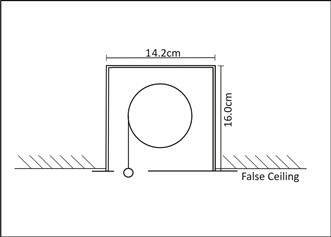

Casing Sectional View
|
CMS-L Series (Motorized Projection Screen)
Includes radio frequency remote control, electronic screen control & universal bracket |
|||||
|
Format
|
Model
|
Screen Size (cm) |
Viewing Area |
Casing Length (cm) |
Total Height |
|
1:1 (3 Sided Black Borders) |
CMS-L3030SL1
CMS-L3030SL2 |
305 x 305
|
297 x 305
|
320
|
365
|
|
CMS-L3636J
CMS-L3636SL |
366 x 366
|
358 x 366
|
381
|
426
|
|
|
CMS-L3939J
CMS-L3939SL |
390 x 390
|
382 x 390
|
405
|
450
|
|
|
CMS-L4040J
CMS-L4040SL |
400 x 400
|
392 x 400
|
415
|
460
|
|
|
Format
|
Model
|
Diagonal (inches / cm) |
Viewing Area |
Casing Length (cm) |
Total Height (cm) |
|
4:3 (4 Sided Black Borders) |
CMS-L3023V/SL1 |
146" / 371
|
297 x 223
|
320
|
283
|
|
CMS-L4030V/SL1
CMS-L4030V/SL2 |
193" / 490
|
392 x 294
|
415
|
354
|
|
| Remarks: |
| All screens supplied come with radio frequency remote control, electronic screen control and universal brackets. |
| All screens are supplied with 4-sided black masking borders. |
| All screens sizes supplied are seamless except 10ft width and above. |
| Other screen sizes are available on indent basis. |
| Come with TWO year warranty.
|
